What is a Fused Spur? An Electric Exploration

A fused spur, or fused connection unit (FCU), is an electrical switch with a built-in fuse. It connects directly to the main power, allowing an appliance to be wired directly into the electrical circuit. Fused spurs are essential in providing a safe and reliable means of controlling the power of high-demand appliances. They also play a crucial role in protecting the wiring and preventing overload by isolating the appliance on its circuit.

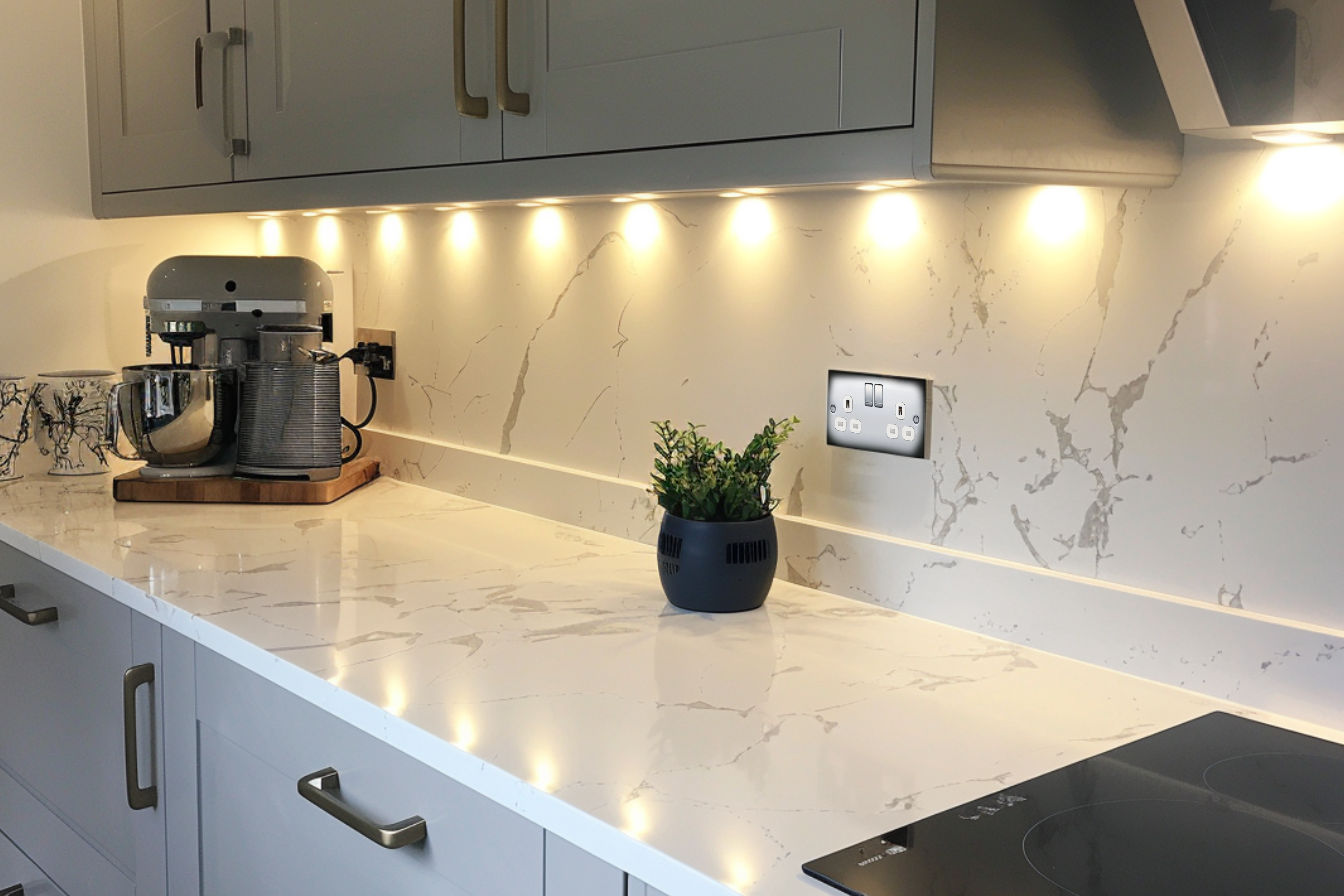

Fused Spurs Guide

They’re widespread in the UK and are vital in residential and commercial buildings for safely operating appliances that require a stable and secure power supply. Including a fuse adds an extra layer of safety, as it will blow if the current is too high, protecting both the appliance and the household’s electrical system from damage.

This setup enhances safety and improves the convenience of controlling power to fixed appliances that don’t have their own on/off switch or are difficult to reach.

Types of Fused Spurs

Fused spurs come in various types, each suited for specific applications based on its features. Understanding these variations helps you choose the right one for your needs.

Switched Fused Spurs

The most common type is switched fused spurs. They include a manual switch that allows you to turn the power on or off directly at the unit. This feature is handy for appliances that aren’t used continuously, such as dishwashers, washing machines and some heaters. The switch provides a convenient way to control these appliances without needing to access the main power panel.

Unswitched Fused Spurs

Unswitched fused spurs do not have a manual switch. They provide a permanent power supply to connected devices and are typically used for appliances that require constant power, like refrigerators and freezers. These are ideal when you do not regularly turn the appliance on and off, providing a seamless and uninterrupted power flow.

Fused Spurs with Timers

A more specialised variant includes fused spurs with timers. These units are equipped with a timing mechanism that can be set to turn the power on and off at designated times. They are perfect for controlling devices like immersion heaters, water pumps, or lighting systems that only need to operate at certain times. By reducing unnecessary operations, they help to save on energy costs and extend the appliance’s life.

Fused Spurs with Neon Indicators

Some fused spurs come with neon indicators. These indicators provide a visual confirmation that the spur is active, which helps monitor the status of the devices connected to it. This feature is particularly useful in complex setups where multiple devices are connected or in commercial settings where clear indications of power status are necessary.

Each type of fused spur offers unique advantages depending on the installation’s specific requirements. When choosing a fused spur, consider the appliance’s needs, the desired level of control, and the installation environment.

Applications and Uses of Fused Spurs

Fused spurs are a fundamental component in residential and commercial electrical systems. They offer a safe and efficient way to manage power distribution to various appliances. Their applications vary widely, adapting to different needs based on the type of fused spur used.

Residential Uses

Fused spurs are commonly used in homes for high-powered kitchen appliances such as ovens, microwaves, dishwashers, and washing machines. These appliances require more power and a stable connection, making direct wiring through a fused spur ideal. This setup enhances safety by preventing overloads and keeps these heavy-duty appliances well-integrated into the kitchen’s electrical layout.

Additionally, fused spurs are used in heating systems, including boilers and electric heaters. In bathrooms, where safety is paramount due to water, fused spurs offer an additional level of security by isolating electrical devices from the primary circuit, which can be crucial for appliances like towel rails and underfloor heating systems.

Commercial and Industrial Uses

In commercial settings, fused spurs are essential for running powerful equipment without the risk of tripping the primary circuit. They are used in new constructions and refurbishments to meet stringent safety standards. For example, they are used in commercial kitchens to power industrial cooking appliances and in laundry facilities to power commercial washers and dryers.

Fused spurs with timers are particularly useful in commercial environments for controlling exterior lighting or security systems, allowing these systems to operate only during necessary hours, thus saving energy and reducing operational costs.

Specialised Applications

Fused spurs also find applications where precise control over power is necessary. For instance, in scientific laboratories, equipment that requires controlled operational times benefits significantly from timer-equipped fused spurs. Similarly, in agricultural settings, fused spurs can control irrigation systems or greenhouse environmental controls, ensuring that power is used only when necessary and thus optimizing resource management.

The flexibility and safety provided by fused spurs make them indispensable parts of modern electrical installations. They cater to various appliances and systems requiring dedicated power sources.

Installation Considerations for Fused Spurs

Proper installation of fused spurs is crucial to ensure safety and functionality in any electrical system. Here are key points to consider when installing fused spurs:

Location and Accessibility

Choose a location for the fused spur that is both accessible and safe. It should be placed near the appliance it will power but in an area that avoids moisture, excessive heat, or potential physical damage. For kitchen appliances, ensure the fused spur is positioned where it can be easily reached for maintenance or in an emergency.

Compliance with Electrical Regulations

Installation must comply with the UK’s national wiring regulations, known as the Wiring Regulations (BS 7671). These regulations cover everything from the choice of electrical products to their installation methods to ensure safety standards are met. Any electrical installation must be done by a qualified electrician who understands these standards.

Installation Process

1. Switch off the Main Power: Ensure the main power supply is turned off before beginning installation work to avoid electrical shock.
2. Prepare the Wiring: Install the appropriate cabling from the primary circuit to the location of the fused spur. This cabling needs to support the appliance’s current requirements.
3. Mount the Back Box: Securely fix the back box (the enclosure holding the fused spur) to the wall, ensuring it is level and properly aligned.
4. Connect the Wires: Attach the live, neutral, and earth wires to their respective terminals on the fused spur. Ensure that all connections are tight and secure.
5. Fix the Fused Spur: Attach the fused spur to the back box and ensure it is securely in place.
6. Test the Installation: Turn the power back on once installed and test the fused spur with a voltage tester to ensure it works correctly.

Safety Testing

After installation, it’s advisable to have the entire circuit checked by a professional. This includes testing the fused spur to ensure it functions as expected without tripping the circuit breaker or causing any electrical faults.

Proper installation and testing are imperative to maximizing the safety and efficiency of your electrical systems. Adhering to these steps will help prevent common electrical issues and ensure that your fused spurs serve their purpose effectively.

Choosing the Right Fused Spur

Selecting the appropriate fused spur is essential for ensuring safety, efficiency, and suitability for the appliance and environment in which it will operate. Here are some factors to consider when choosing a fused spur:

Understanding Appliance Requirements

Power Needs: Check the appliance’s power requirements. Most fused spurs are rated for 13 amps, which suits most household appliances. However, specific devices may require a lower or higher amperage, which will dictate the type of fused spur needed.

Continuous Operation: Determine if the appliance needs constant power. An unswitched fused spur is appropriate for appliances like refrigerators that should not be turned off. A switched fused spur is ideal for appliances you might need to disconnect occasionally without unplugging.

Environmental Considerations

Location: Consider the environment where the fused spur will be installed. For wet areas like bathrooms and kitchens, look for fused spurs with appropriate safety ratings to handle moisture and splashes.

Accessibility: Ensure the fused spur is placed in an area where it can be easily accessed for maintenance or emergency power off.

Special Features

Timers and Indicators: For appliances that only need to run at certain times, consider fused spurs with built-in timers. These can help save energy and reduce wear on the appliance. Neon indicators are useful for showing whether the spur is active, especially in complex setups or commercial environments where visibility of power status is necessary.

Brand and Quality

Reputable Brands: Opt for fused spurs from reputable manufacturers to ensure reliability and compliance with safety standards. Brands like MK Electric and Schneider Electric are known for their high-quality electrical components that meet UK standards.

Warranty and Support: Check the warranty and support options available. An extended warranty period can provide peace of mind, knowing that the product is covered against manufacturing defects.

Compliance and Certification

Safety Certifications: Ensure that the fused spur has the necessary safety certifications, such as BS1363 or the latest equivalent, and conforms to UK wiring regulations.

Professional Installation: While selecting the right fused spur is crucial, professional installation is equally important. Ensure the installation is done by a certified electrician who can adhere to all local codes and standards.

Considering these factors, you can choose the most suitable fused spur for your needs, ensuring that it operates safely and effectively while meeting your setup’s specific requirements.

Maintenance and Troubleshooting of Fused Spurs

Regular maintenance and timely troubleshooting are essential to ensure the long-term reliability and safety of fused spurs. Here are some tips and common issues to be aware of:

Routine Maintenance Tips

• Visual Inspections: Regularly check the fused spur for any signs of wear or damage. Look for discolouration, melting, or signs of electrical burn. These can indicate overheating or electrical faults.
• Testing the Fuse: Periodically test or replace the fuse to ensure it is functioning correctly. A blown fuse can indicate an overload or a short circuit within the appliance it serves.
• Ensure Tight Connections: Loose connections can lead to overheating and electrical fires. During routine checks, make sure all connections are tight and secure.
• Clean and Dust-Free: Keep the fused spur and its surrounding area clean and free from dust, which can cause poor connections and potential hazards.

Common Issues and Troubleshooting

• Fused Spur Not Working: If a fused spur stops working, the first step is to check the fuse. Replace it if necessary. If the issue persists, check for loose or disconnected wires.
• Appliance Tripping the Fuse: If an appliance frequently trips the fuse, it might be drawing more power than the spur can handle. Consider upgrading the fused spur or consulting with an electrician to assess whether there are underlying issues with the appliance or wiring.
• Switch Issues: For switched fused spurs, if the switch is stiff or not operating smoothly, it may need to be replaced. Sometimes, debris or dust accumulation can hinder switch operation, so cleaning might resolve the issue.
• Overheating: If the fused spur feels unusually hot, disconnect the appliance immediately and consult an electrician. Overheating can be caused by overloading, poor connections, or a failing appliance.

Advanced Troubleshooting

For more complex issues, such as wiring problems or frequent fuse replacement, it may be necessary to consult a professional. Certified electricians can perform detailed diagnostics and safely repair or replace faulty components.

Professional Assessment: If you’re experiencing continuous problems with your fused spurs or connected appliances, having a professional electrician review the entire circuit can help identify and resolve less obvious issues.

Upgrade Recommendations: An electrician can also provide advice on whether your current setup requires upgrades to handle new or additional appliances safely.

Maintaining and troubleshooting fused spurs effectively will help ensure that your electrical system remains safe and functional. Regular attention to these devices can prevent larger electrical issues and contribute to the overall safety of your home or business environment.

Conclusion: Ensuring Safety and Efficiency with Fused Spurs

Fused spurs, essential components of modern electrical systems, provide a reliable and safe way to connect appliances directly to the mains power. By understanding the different types of fused spurs—switched, unswitched, and those with special features like timers and neon indicators—users can choose the right configuration for their specific needs.

Proper installation and routine maintenance are crucial in maximizing the safety and functionality of these devices. Whether in residential, commercial, or industrial settings, fused spurs play a pivotal role in managing power distribution effectively, preventing overloads, and enhancing overall electrical safety.

By adhering to the guidelines discussed, homeowners and professionals alike can ensure that their electrical systems are not only compliant with safety standards but also optimized for long-term performance.
